Quick answer: Choose forged wheel concavity only after the fitment envelope is known. Diameter, width, offset, brake caliper, hub/fastener geometry, spoke thickness, load target and manufacturing limits determine how deep the center can sit. The best-looking wheel is not the render with the deepest dish; it is the design whose spoke path, outer face and front/rear profiles create the intended stance while maintaining verified clearance and structural targets.
What Wheel Concavity Actually Means
Concavity describes how the visible spoke surfaces travel from the rim area toward a center section that appears recessed. There is no universal “deep concave” dimension shared by every brand. Two wheels can use the same diameter and offset yet look different because spoke origin, curvature, face projection, center-pad height, lip treatment and viewing angle change the visual depth.
| Design term | What the buyer sees | What engineering must resolve |
|---|---|---|
| Flat / mild profile | Center and spoke faces remain visually close to the rim plane | Caliper envelope, spoke stiffness and weight target |
| Medium concavity | Visible inward spoke sweep with balanced daily-use stance | Offset/width, caliper peak, center-pad and spoke path |

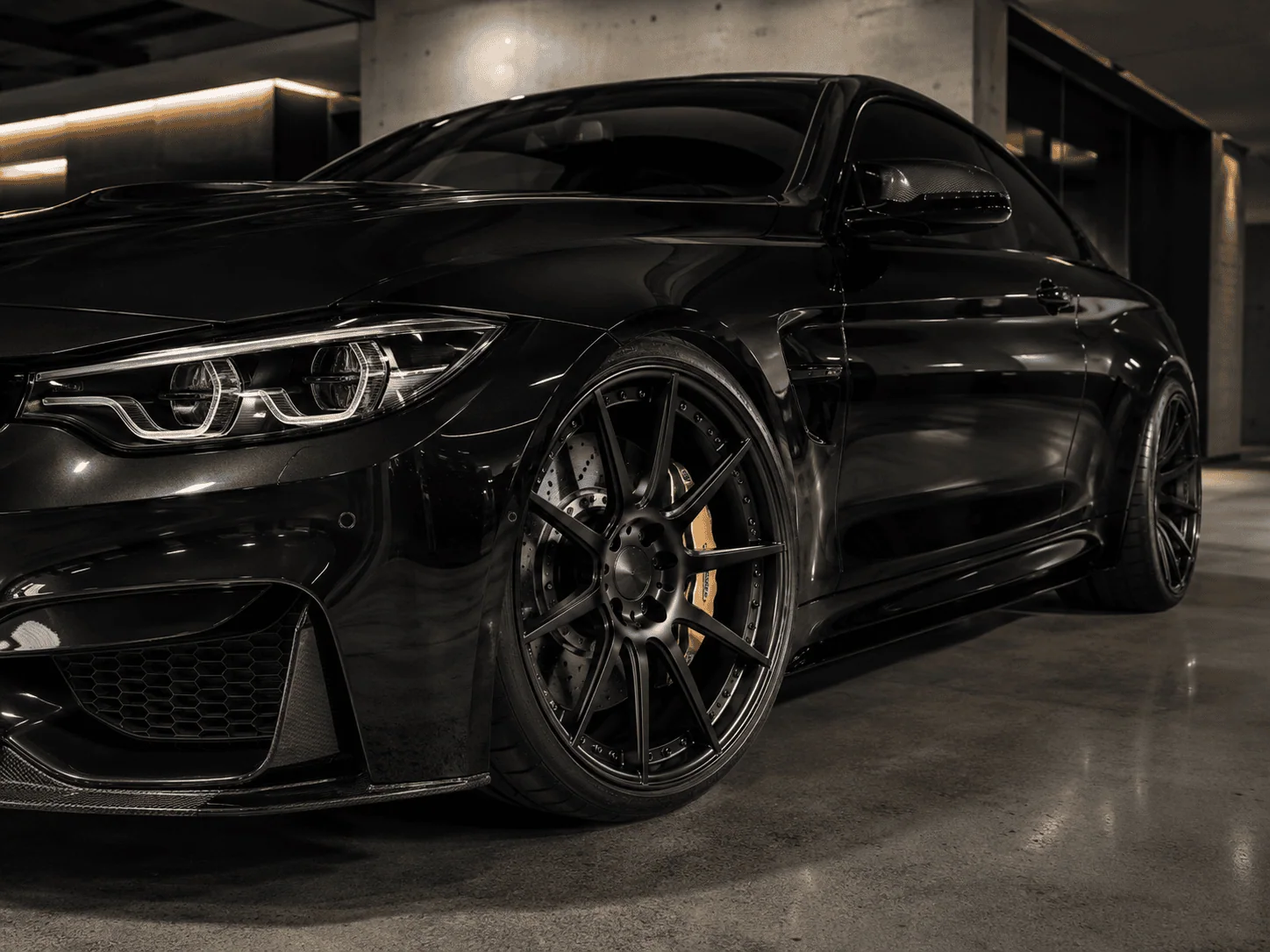

| Deep concavity | Strong recession toward the hub and dramatic side angle | Higher clearance conflict risk, face projection and front/rear feasibility |
| Step lip / deep lip | Outer barrel or lip creates depth, especially on multi-piece wheels | Barrel construction, assembly flange, brake package and usable inner space |
| Directional spoke | Spokes sweep clockwise/counterclockwise | Left/right part control, mold/CNC data, markings and packaging |
The Six Inputs That Control Concavity
- Wheel diameter and width: establish the basic rim space and proportional canvas.
- Offset and mounting position: move the wheel relative to the hub and influence available face depth.
- Brake envelope: caliper radial height, axial projection and shape determine the spoke-clearance path.
- Hub and fasteners: center bore, lug seat, PCD, nut/bolt access and hub projection shape the center section.
- Load and use case: vehicle mass, axle position, road/off-road duty and test target affect spoke and center design.
- Construction and finish: monoblock versus multi-piece architecture, machining access and finishing zones affect the achievable visual result.
Why Offset Alone Cannot Predict Brake Clearance
Offset describes the mounting pad position relative to the wheel centerline. It does not define the spoke surface. Caliper clearance depends on the complete three-dimensional relationship between the mounting face, center pad, spoke back profile and caliper envelope. A wheel can have a familiar offset and still contact a large brake caliper if the spoke barrel or back pad follows a different path.
A spacer can change the wheel position, but it is not a substitute for confirming the correct wheel, fastener engagement, hub support, fender clearance and local compliance for the complete vehicle.
Concavity Versus Vehicle Stance
| Decision | More conservative direction | More aggressive direction | Verify before approval |
|---|---|---|---|
| Offset/width | Keeps outer face closer to known fitment | Moves outer edge or changes inner clearance for stronger stance | Suspension, fender, tire and steering clearance |
| Spoke profile | Mild face with greater caliper allowance | Deeper visual sweep toward the center | Full brake template and minimum clearance target |
| Front/rear setup | One face profile for easier rotation/service | Staggered profiles with deeper rear concavity | Axle-specific sizes, tire diameters and SKU control |
| Lip treatment | Minimal lip emphasizes large face | Step/deep lip adds layered depth | Construction, barrel space and assembly details |
| Center area | Open hardware access and shallow cap | Tight, recessed center for visual drama | Socket/tool access, cap fit and hub projection |
How to Choose a Spoke Design
Five-spoke and split five-spoke
These layouts can create a clear, athletic appearance and large windows that display brakes. The design still needs adequate spoke section, lug access and a controlled transition into the rim and center.
Multi-spoke and mesh
More spokes can produce a technical or luxury look and distribute visual mass around the wheel. Narrow windows can make cleaning, finishing and caliper inspection harder, so review real-scale renderings and service access.
Directional and turbine styles
Directional designs amplify motion but require an explicit left/right strategy. If mirrored rotation matters, the brand must manage separate part numbers, artwork, machining files, markings and packaging for each side.
Y-spoke and branching layouts
Branching spokes add detail without closing the windows completely. Pay attention to tight intersections, finish accumulation, machining transitions and the back-profile path near the caliper.
Front and Rear Concavity Strategy
A staggered vehicle often has more rear width or a different offset envelope, which may allow a deeper rear face. Do not promise “deep concave front and rear” from vehicle name alone. Decide whether the program prioritizes one consistent face, maximum axle-specific depth or wheel rotation. Record the front and rear profile codes separately even if the visible design family is shared.
Design Approval Workflow
- Send exact vehicle year, trim, market, suspension state, tire plan and brake package.
- Confirm diameter, width, PCD, center bore, fastener seat and candidate offset for each axle.
- Provide an OEM drawing, reliable scan/template or measured brake envelope.
- Review a fitment section before judging beauty renders.
- Compare mild, medium or deep face options that are feasible inside the same envelope.
- Approve the spoke front view, side profile, back profile, center area and finish map.
- Validate clearance, load/test plan and manufacturability before sample release.
- Test-fit the physical sample on the exact brake and vehicle configuration before volume production.
Concavity Review Checklist
- Front and rear wheel size, width and offset
- Tire size, sidewall profile and intended pressure/use
- Brake caliper template or scan with scale and orientation
- Minimum radial, axial and spoke clearance requirement
- Hub projection, cap depth and dust-cap clearance
- Lug/nut/bolt seat and installation tool access
- Suspension, steering, fender and inner-barrel clearance
- Load target, test/document requirement and destination market
- Finish build on relevant surfaces and post-machining dimensions
- Front/rear or left/right SKU identification
Use the wheel offset calculator to compare positional changes, then read the offset, PCD and center-bore fitment guide. Browse custom forged wheel constructions and project directions before selecting a face profile.
Frequently Asked Questions
Does lower offset always create a deeper concave wheel?
No. It can change the available design envelope, but brake geometry, width, center-pad height, spoke path, load and construction also control the face profile.
Can the front and rear wheels use the same concavity?
Yes if the fitment envelopes allow it, but a staggered package may use different face profiles. Decide whether rotation, visual consistency or maximum rear depth has priority.
Is a 2D brake template enough?
A reliable scaled template can support an initial check, but complex calipers and tight targets may require OEM data, a 3D scan or physical test fit.
Can I approve the design from a front-view render?
No. Review the side and back profiles, section views, caliper envelope, hub/fastener access and physical sample as well as the beauty render.
